Seeing Inside Amazon EKS with OpenTelemetry 🔍

Why This Setup?

Before getting into the architecture, a few quick notes. Telemetry goes to both New Relic and Honeycomb to test OpenTelemetry’s backend-independence promise and compare the two. New Relic wins on day-to-day usability — dashboards, APM, and alerts work intuitively. Honeycomb takes more getting used to, but its MCP server is where it genuinely shines: connected to Claude, you can ask plain-English questions against live telemetry — no NRQL or PromQL required. That’s the part worth jumping to 👇 first if you’re short on time.

Introduction

Observability has become a critical part of operating modern cloud-native applications. While application metrics, logs, and traces provide valuable insights, true observability also requires visibility into the Kubernetes platform itself.

In this project, I built a complete observability platform on Amazon EKS using OpenTelemetry, ArgoCD, Traefik, New Relic, and Honeycomb. The goal was to learn OpenTelemetry end-to-end while implementing GitOps practices and collecting telemetry from both applications and Kubernetes infrastructure.

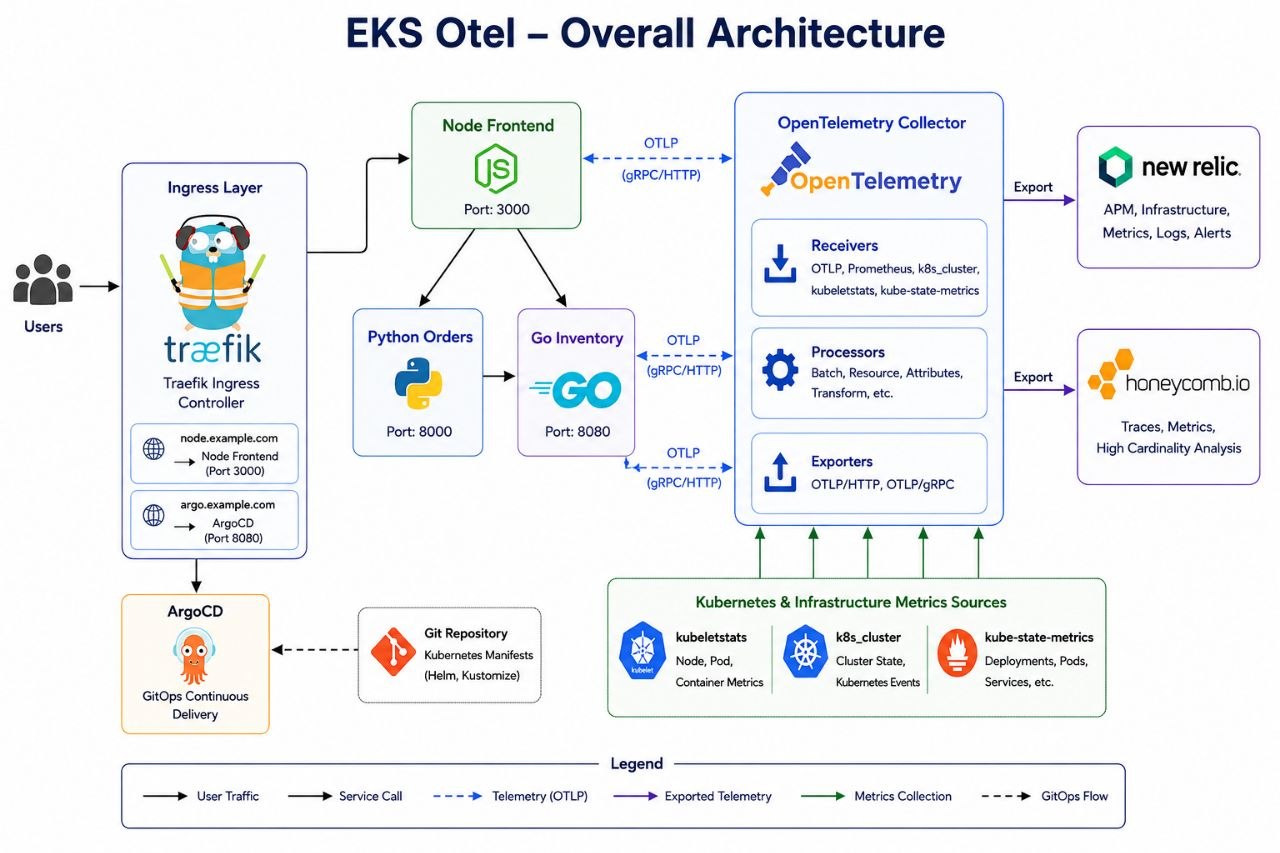

Architecture Overview

The platform consists of:

• Amazon EKS
• ArgoCD
• Traefik Ingress Controller
• OpenTelemetry Collector
• kube-state-metrics
• Node Frontend Service
• Python Orders Service
• Go Inventory Service
• New Relic
• Honeycomb

The OpenTelemetry Collector acts as the central telemetry pipeline and exports data to multiple observability backends.

Project Structure

The project is split into two repositories.

The first repository, otel-labs , contains the application source code, OpenTelemetry instrumentation, Dockerfiles, and GitHub Actions workflows.

The second repository, otel-labs-platform , contains the infrastructure and Kubernetes platform configuration required to run those applications on Amazon EKS.

This separation follows a common GitOps pattern where application development and platform management are handled independently.

otel-labs
│
├── Source Code
├── Dockerfiles
├── OpenTelemetry Instrumentation
└── GitHub Actions

otel-labs-platform
│
├── Terraform
│   ├── VPC
│   ├── Amazon EKS
│   ├── Node Groups
│   └── Bootstrap Configuration
│
└── Kubernetes
    ├── ArgoCD Applications
    ├── Traefik
    ├── OpenTelemetry Collector
    ├── kube-state-metrics
    └── Application Manifests

Application Repository (otel-labs)

The application repository contains three microservices:

• Node Frontend
• Python Orders
• Go Inventory

Each service is instrumented using OpenTelemetry SDKs and exports telemetry using the OTLP protocol.

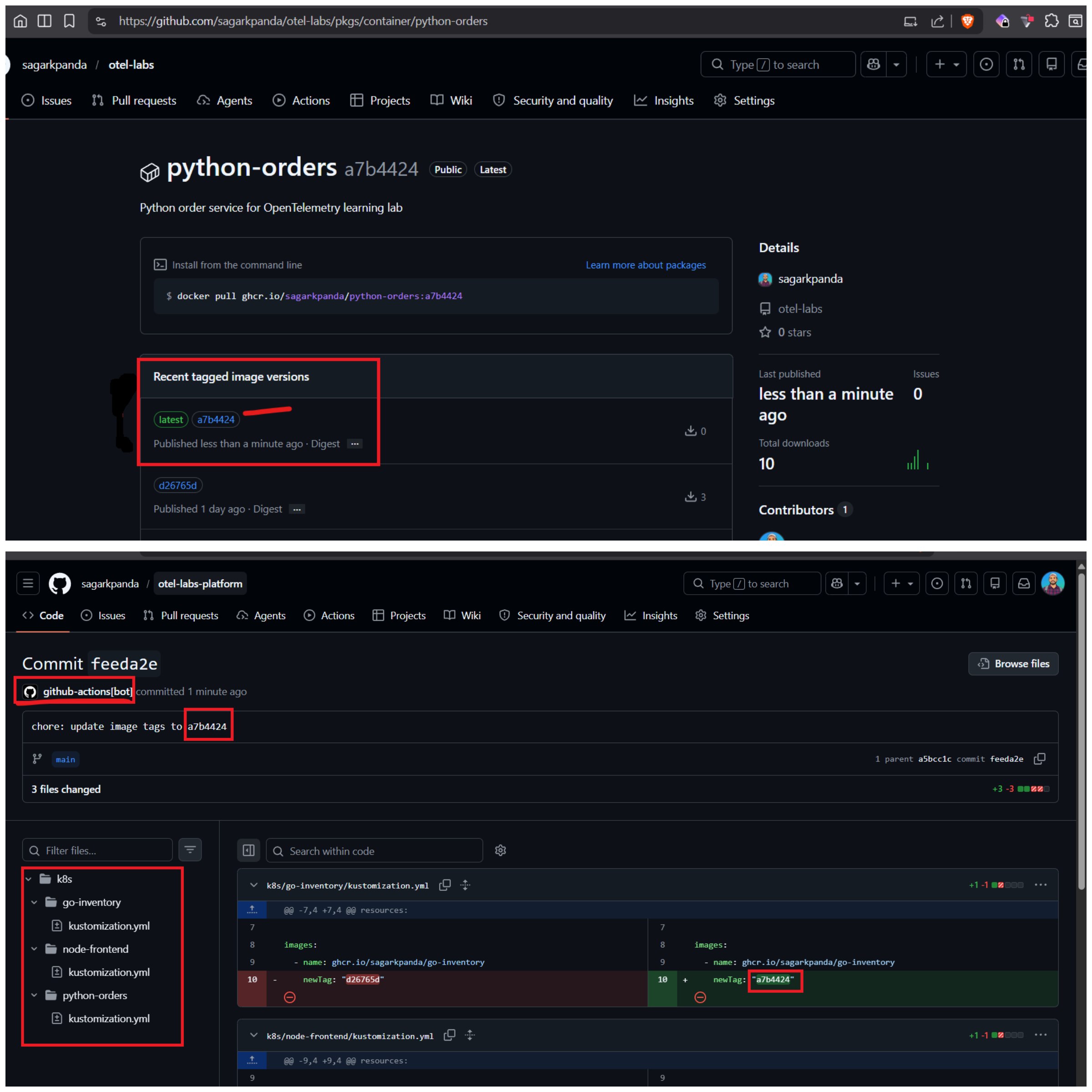

The repository also contains a GitHub Actions workflow that builds container images and publishes them to GitHub Container Registry (GHCR). Images are tagged with both a short commit hash and a latest tag, although the Kubernetes manifests always reference the immutable commit-based tag.

After publishing an image, the workflow updates the image tag in the platform repository’s kustomization.yml using sed. The workflow then commits and pushes the change to the platform using the GitHub Actions bot account. ArgoCD detects the Git change during its next sync cycle and automatically deploys the new version. No manual kubectl apply commands are required, and Git remains the single source of truth.

Code Change
     │
     ▼
GitHub Actions
     │
     ▼
Build Container Images
     │
     ▼
Push Images to GHCR
     │
     ▼
Update Image Tag in
otel-labs-platform

This means the application repository is responsible only for producing deployable artifacts, while the platform repository remains responsible for deployment.

For local development, the entire application stack can be started using Docker Compose.

After creating a .env file from .env.example, run:

docker compose up --build -d

This launches all services together with the OpenTelemetry Collector, allowing telemetry to be exported to the configured observability backends.

Platform Repository (otel-labs-platform)

The platform repository contains everything required to run the applications on Kubernetes.

terraform/
├── eks.tf
├── addons.tf
├── bootstrap.sh
└── ...

k8s/
├── argo-apps/
├── node-frontend/
├── python-orders/
├── go-inventory/
├── otel-collector/
└── kustomization.yml

Terraform is responsible for infrastructure provisioning, while Kubernetes manifests are managed using GitOps through ArgoCD.

This separation allows infrastructure, platform services, and application workloads to evolve independently while remaining declarative.

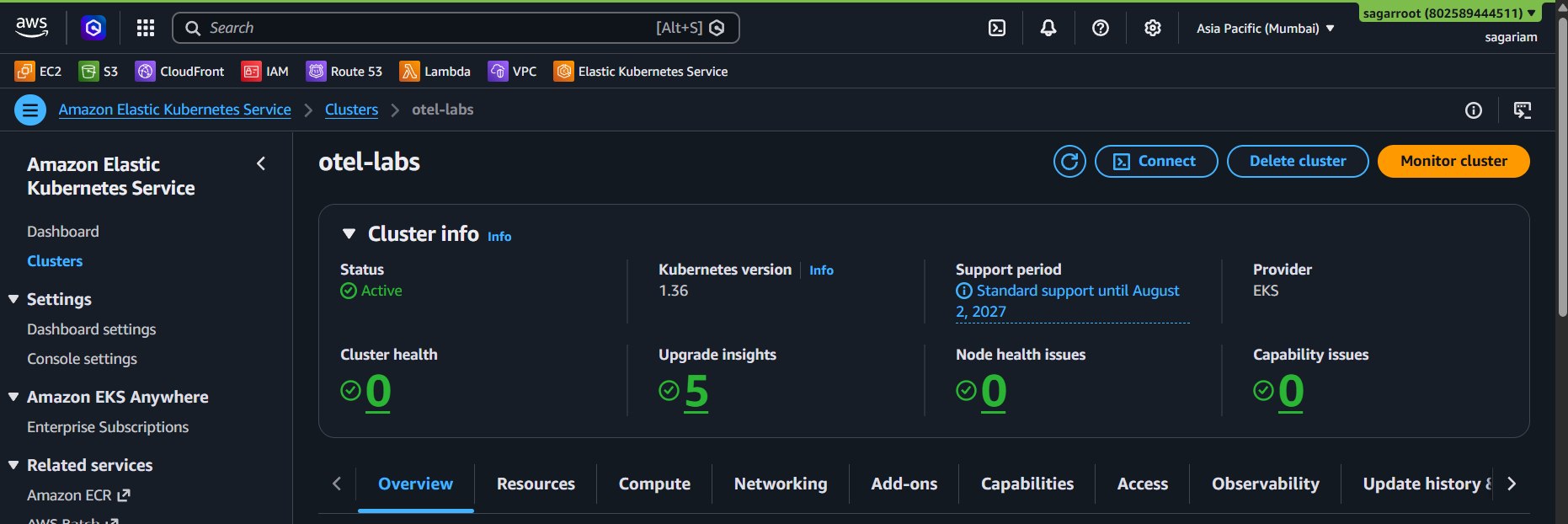

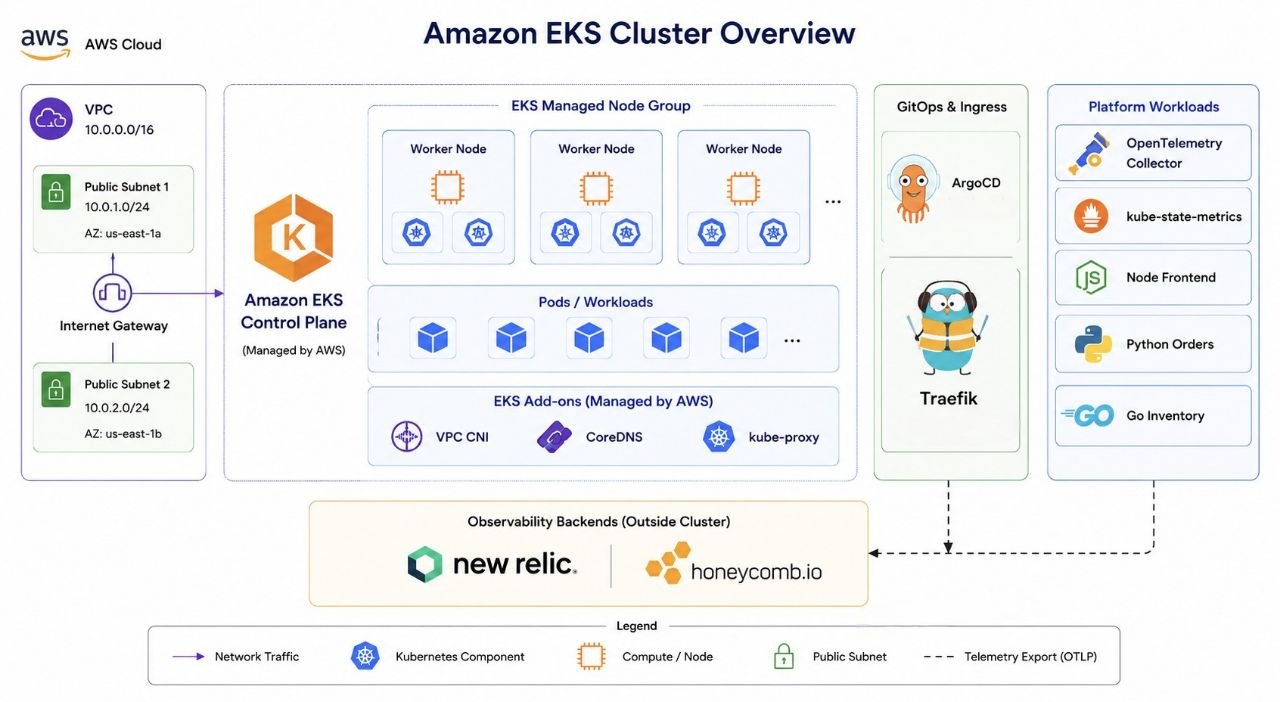

Setup AWS EKS with Terraform

The Kubernetes platform is hosted on Amazon EKS and provisioned entirely using Terraform.

The deployment creates:

• VPC
• Public Subnets
• Amazon EKS Control Plane
• Managed Node Group
• EKS Managed Addons

The managed addons installed are:

• VPC CNI
• CoreDNS
• kube-proxy

Using EKS managed addons simplifies upgrades and reduces operational overhead.

After Terraform finishes provisioning the cluster, it invokes a bootstrap script which performs the initial platform setup.

The bootstrap process:

1. Updates the local kubeconfig.
2. Creates the ArgoCD namespace.
3. Installs ArgoCD using Helm.
4. Creates the application namespace.
5. Applies observability secrets required by the OpenTelemetry Collector.

Terraform Apply
       │
       ▼
Amazon EKS Created
       │
       ▼
bootstrap.sh
       │
       ├── Update kubeconfig
       ├── Install ArgoCD
       ├── Create Namespaces
       └── Apply Secrets

The secrets contain the credentials required by the OpenTelemetry Collector exporters to send telemetry to New Relic and Honeycomb.

A secrets.example.yml file is included in the repository as a reference, while the actual secrets file remains excluded from version control.

Installing ArgoCD

After the EKS cluster is provisioned, a GitOps controller is required to manage Kubernetes resources declaratively.

ArgoCD continuously monitors Git repositories and reconciles the cluster state to match the desired configuration stored in Git. This removes the need to manually apply manifests after every change and provides a centralized view of application deployments.

As part of the cluster bootstrap process, ArgoCD is installed automatically using Helm.

The bootstrap workflow performs:

1. Update kubeconfig
2. Create the ArgoCD namespace
3. Add the Argo Helm repository
4. Install ArgoCD
5. Apply observability secrets

helm upgrade --install argocd \
  argo/argo-cd \
  -n argocd \
  --set configs.params."server\.insecure"=true

GitOps Deployment Approaches

ArgoCD supports multiple bootstrap patterns depending on how applications are organized and deployed.

Regardless of the approach used, ArgoCD remains responsible for continuously reconciling workloads and ensuring the cluster matches the desired state defined in Git.

Option 1: Individual Application Manifests

Each ArgoCD Application can be created independently.

kubectl apply -f traefik-app.yml
kubectl apply -f kube-state-metrics-app.yml
kubectl apply -f otel-collector-app.yml
kubectl apply -f node-frontend-app.yml
kubectl apply -f python-orders-app.yml
kubectl apply -f go-inventory-app.yml

This approach provides maximum flexibility and is useful when deploying or troubleshooting applications individually.

Option 2: Root Application (App of Apps)

A parent application manages a collection of child applications.

Root Application
      |
      +---- Traefik
      +---- kube-state-metrics
      +---- OpenTelemetry Collector
      +---- Node Frontend
      +---- Python Orders
      +---- Go Inventory

Flow:

Install ArgoCD
      |
      v
Apply Root Application
      |
      v
ArgoCD Creates Child Applications
      |
      v
Applications Deploy Workloads

This pattern is commonly known as the App of Apps pattern and provides a single entry point for deploying an entire platform stack.

The root application itself can also be applied automatically during cluster bootstrap, allowing workloads to be deployed immediately after the cluster becomes available.

Option 3: Kustomize Bootstrap

The final implementation uses a Kustomize root directory that references all ArgoCD applications.

k8s/
├── argo-apps/
│   ├── traefik-app.yml
│   ├── kube-state-metrics-app.yml
│   ├── otel-collector-app.yml
│   ├── node-frontend-app.yml
│   ├── python-orders-app.yml
│   └── go-inventory-app.yml

Everything can be deployed using:

kubectl apply -k k8s

Flow:

Install ArgoCD
      |
      v
Apply Kustomize Root
      |
      v
ArgoCD Applications Created
      |
      v
Applications Deploy Workloads

This approach removes the need for a dedicated root application while still providing a single deployment entry point for the entire platform.

Installing Traefik

A Kubernetes cluster requires an ingress controller to route external traffic to internal services.

Traefik is deployed through ArgoCD using the official Helm chart and automatically discovers Kubernetes Ingress resources. Whenever a new Ingress object is created, Traefik dynamically updates its routing configuration without requiring additional manual configuration.

source:
  repoURL: https://traefik.github.io/charts
  chart: traefik

Within this platform, Traefik acts as the entry point for external traffic and routes requests to services running inside the cluster.

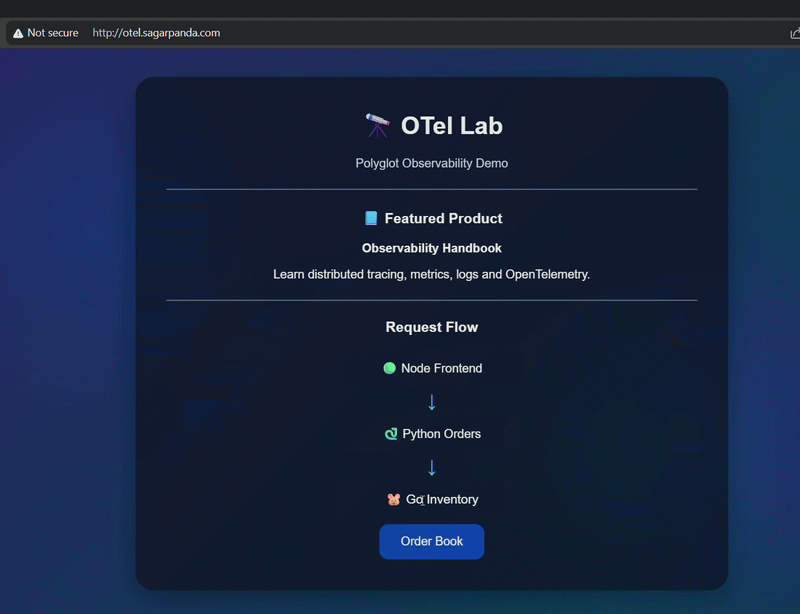

The node-frontend is exposed via Treafik Ingress. To view the ingress dns name run kubectl get ing -A. Then map that dns records to a CNAME record with your domain registrar.

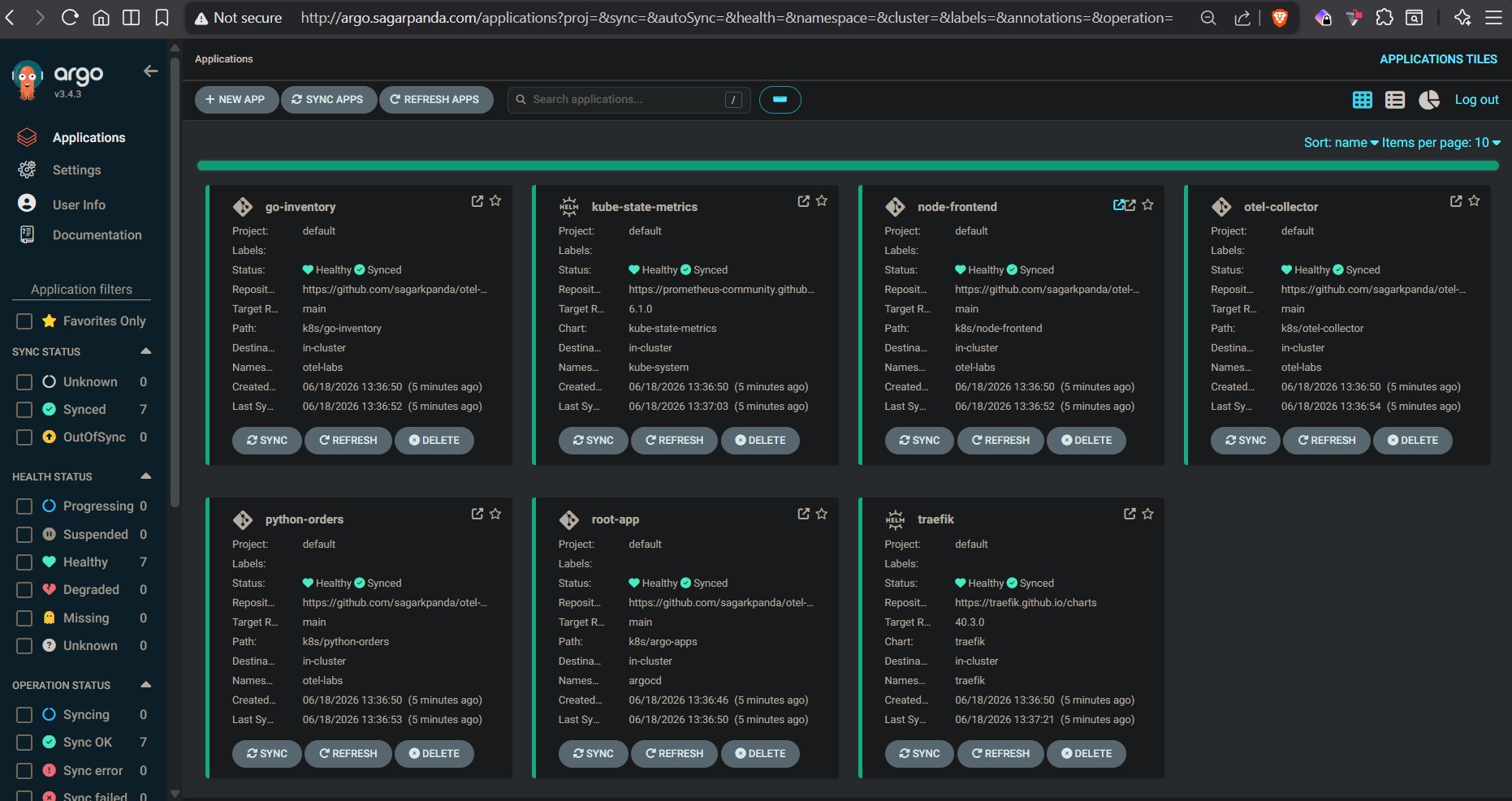

Exposing ArgoCD

After installation, the ArgoCD server is only accessible from within the cluster.

To provide browser access, a Kubernetes Ingress resource is created. Traefik detects the Ingress and automatically configures routing for the ArgoCD service. Apply the ingress resource under k8s/infra/argo/argo-ingress.yml, which also uses the same ingress created earlier for node app. Similarly create another CNAME record for argo ui.

apiVersion: networking.k8s.io/v1
kind: Ingress

OpenTelemetry Collector

The OpenTelemetry Collector acts as the central telemetry pipeline for the platform. The collector is deployed as a DaemonSet to ensure node-local Kubernetes metrics are collected from every worker node in the cluster.

Instead of applications sending telemetry directly to observability platforms, traces, metrics, and logs are first sent to the collector. This provides a central location for processing, enrichment, filtering, and routing while keeping application instrumentation vendor-neutral.

The collector is responsible for:

• Receiving OTLP telemetry
• Collecting Kubernetes metrics
• Enriching telemetry with Kubernetes metadata
• Exporting telemetry to multiple backends

Telemetry flow:

Applications
      ↓
OTLP Receiver
      ↓
Processors
      ↓
Exporters
      ↓
New Relic / Honeycomb

The same telemetry stream can be exported to multiple destinations simultaneously without modifying application code.

Collecting Application Telemetry

The platform contains three sample services:

node-frontend
python-orders
go-inventory

Each service is instrumented using OpenTelemetry SDKs and exports telemetry using OTLP.

Whenever a request flows through the application, traces, metrics, and logs are generated and sent to the OpenTelemetry Collector.

Application
      ↓
OTLP
      ↓
OpenTelemetry Collector

By routing telemetry through the collector, applications remain independent of any specific observability vendor while still supporting multiple observability backends.

Kubernetes Observability

Application telemetry provides visibility into application behavior, but understanding the health of the Kubernetes platform requires additional telemetry sources.

The OpenTelemetry Collector gathers Kubernetes telemetry from multiple components and APIs to provide visibility into nodes, pods, deployments, services, and overall cluster state.

kubeletstats

Provides:

• Node Metrics
• Pod Metrics
• Container Metrics

kubelet
   ↓
kubeletstats receiver

k8s_cluster

Provides:

• Cluster State
• Kubernetes Events

Kubernetes API
       ↓
k8s_cluster receiver

kube-state-metrics

Provides:

• Deployments
• StatefulSets
• DaemonSets
• Services
• Replica Counts
• Pod Status

kube-state-metrics
        ↓
Prometheus Receiver
        ↓
OpenTelemetry Collector

Multi-Backend Observability

One of the primary benefits of OpenTelemetry is backend independence.

Telemetry can be exported to multiple observability platforms simultaneously while maintaining a single instrumentation strategy across applications and infrastructure.

In this platform, telemetry is exported to both New Relic and Honeycomb. Now we have telemetry data from both the apps and the k8s infrastructure and workloads.

Note: Create API keys for both platforms to be able to export data into them. For New Relic, create ingest license, for honeycomb create ingest api key

New Relic

New Relic provides a user-friendly interface with built-in dashboards, APM views, service maps, tracing, logging, and alerting capabilities. While Kubernetes metrics collected through OpenTelemetry are available and queryable using NRQL, some of New Relic’s prebuilt Kubernetes experiences may require the New Relic Kubernetes integration for full functionality.

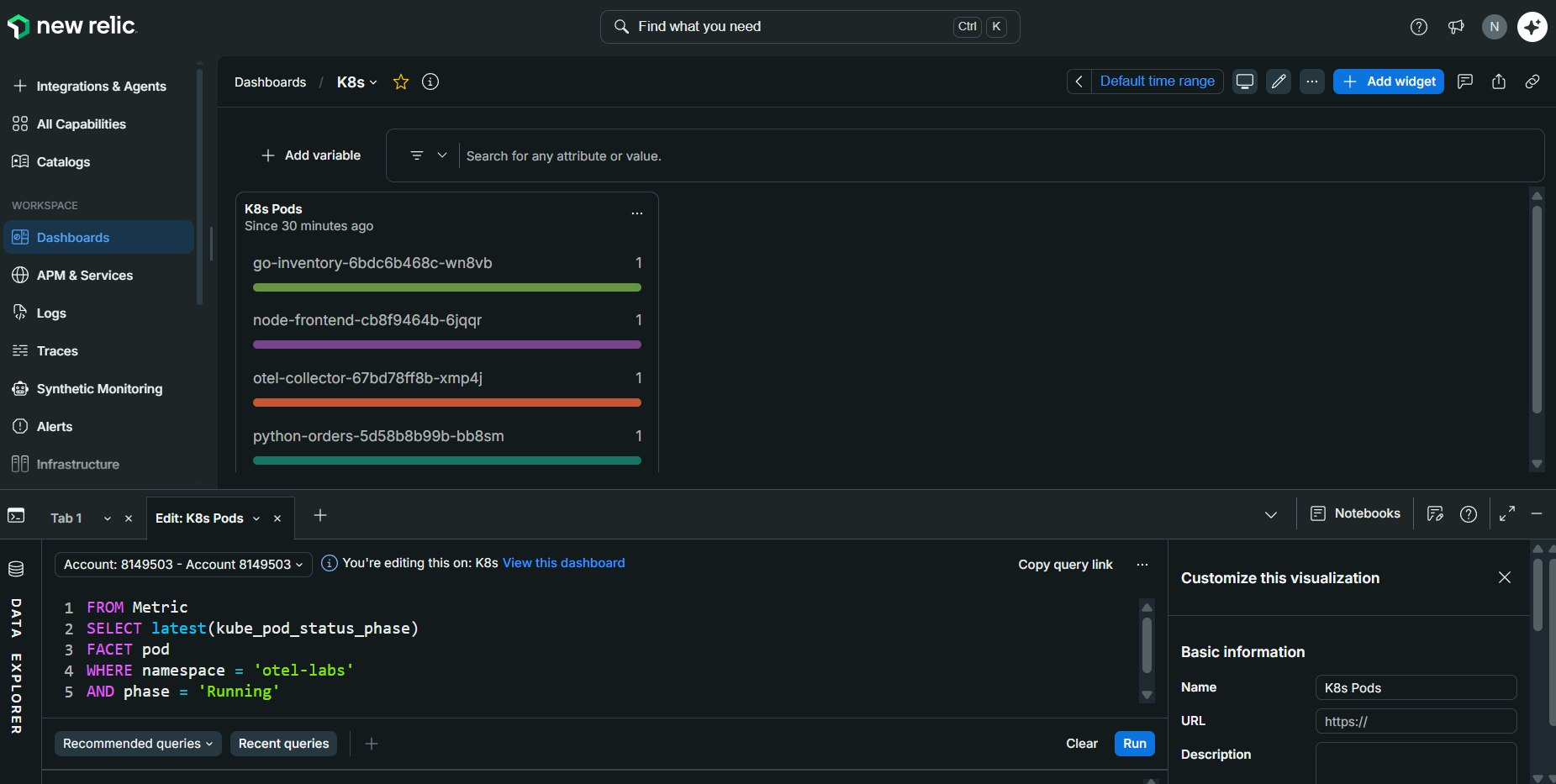

Kubernetes metrics can be queried directly using NRQL, or used to build custom dashboards and visualizations tailored to your environment.

New Relic offers a generous free tier for learning and personal projects. The platform includes features such as:

• APM and Dashboards
• Metrics and Logs
• Distributed Tracing
• Span Correlation
• Service Maps
• Dependency Discovery
• Alerts

Alerts can be configured using NRQL conditions and delivered through channels such as Email, Slack, Microsoft Teams, or Webhooks. When a threshold is met, New Relic automatically triggers the configured notification.

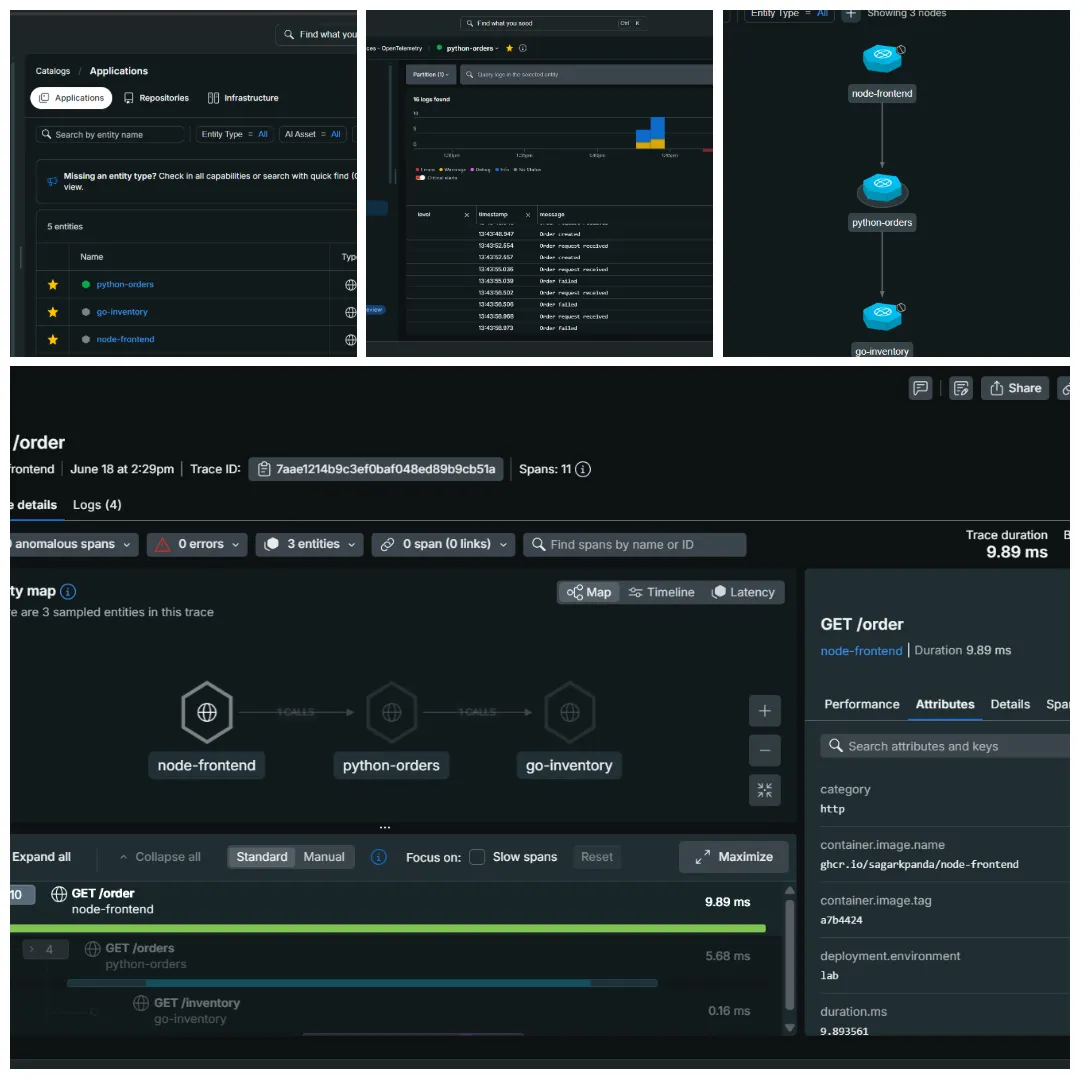

To explore distributed tracing, open the Node Frontend service from the APM view and navigate to Distributed Traces. Open a recent request, inspect the spans, attributes, and logs, then copy the Trace ID to correlate activity across the other services participating in the same request flow.

Honeycomb.io

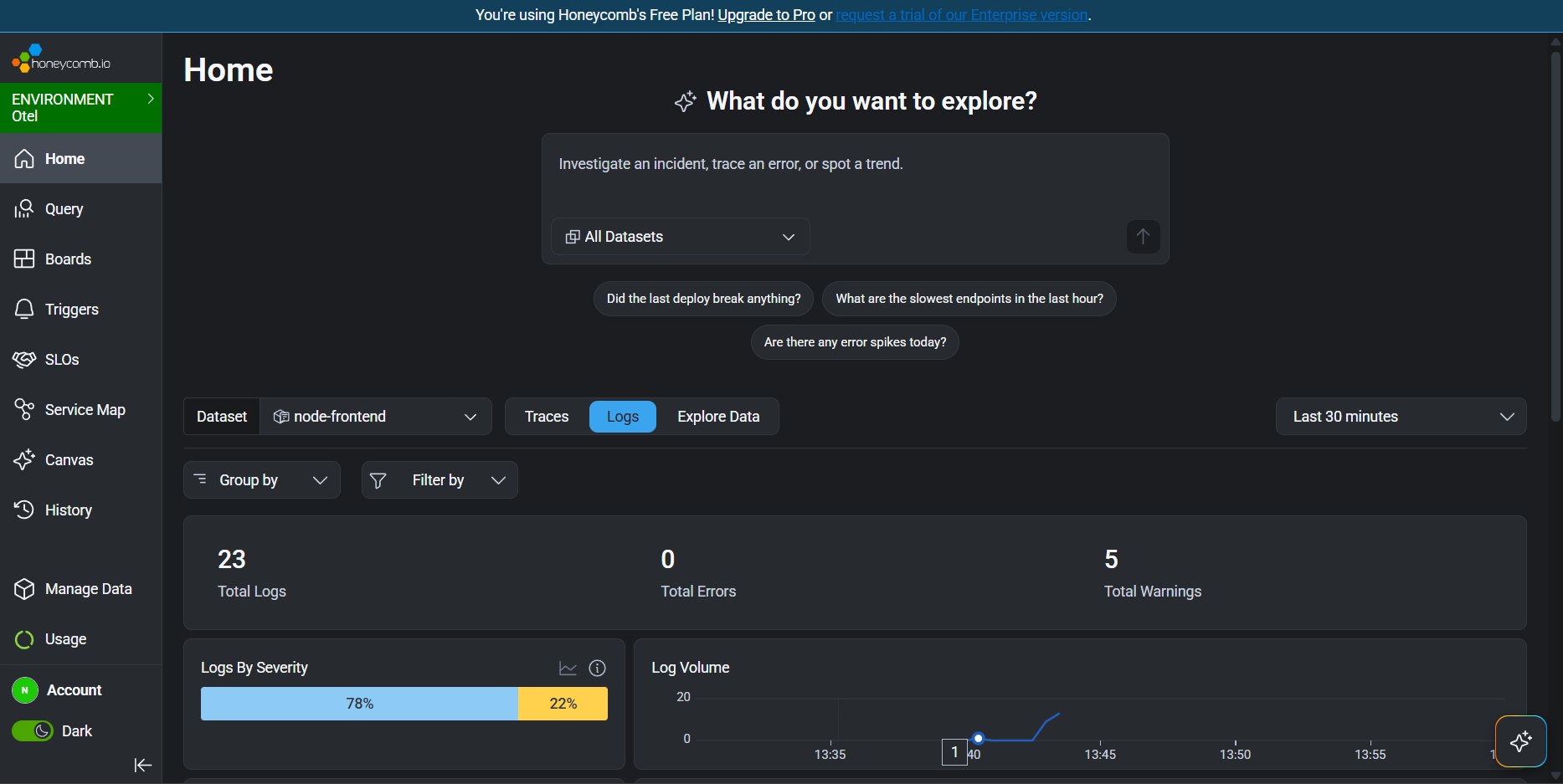

Honeycomb is an observability platform built around OpenTelemetry with AI-assisted observability capabilities. Since both application and Kubernetes telemetry flow through the OTel Collector’s multi-exporter pipeline, the same data lands in Honeycomb without additional instrumentation.

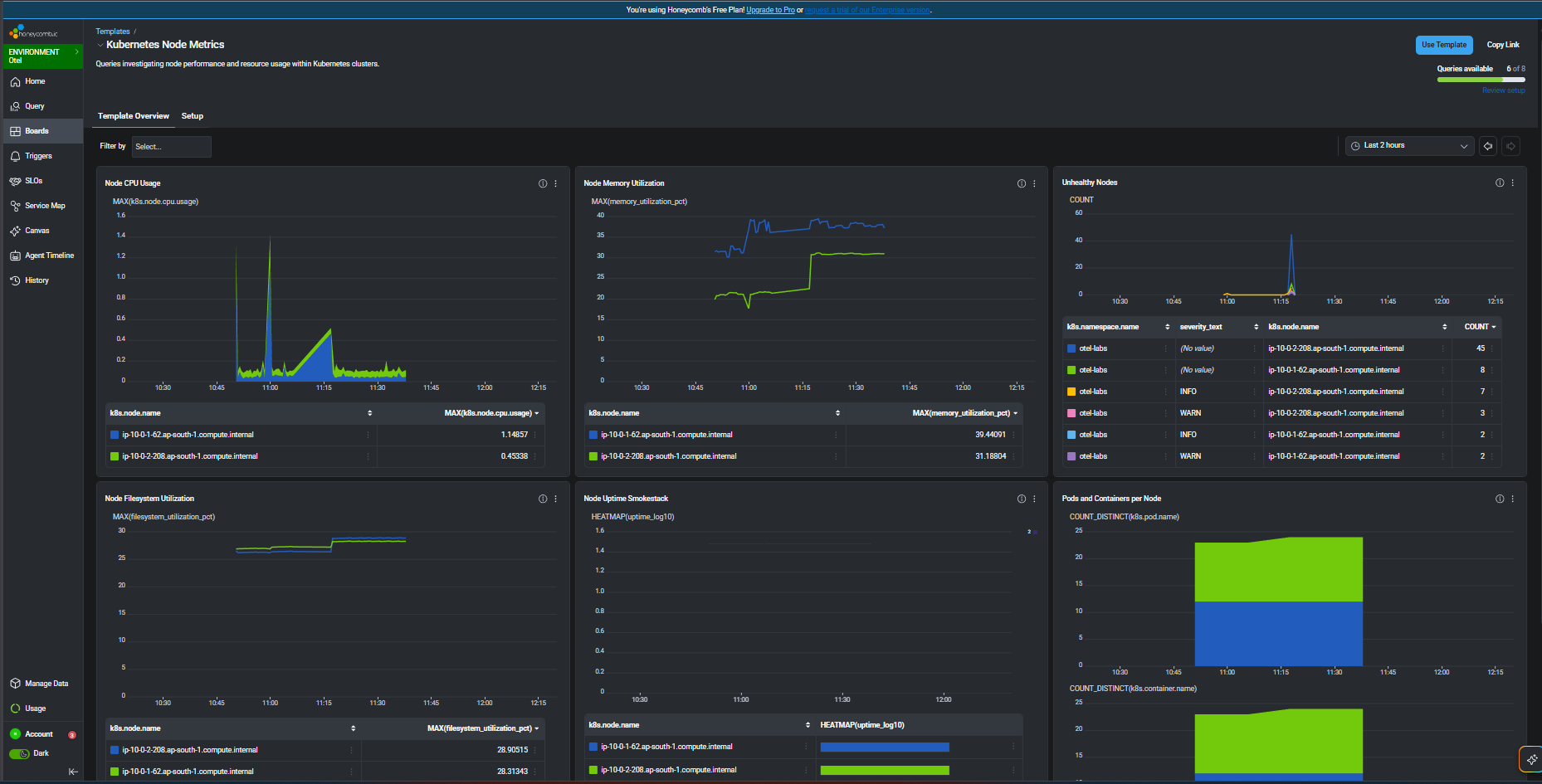

The query builder is solid for slicing metrics and traces, but where Honeycomb stands out is the MCP server and Canvas — once connected to Claude, your telemetry becomes something you can interrogate in plain English rather than hand-writing queries.

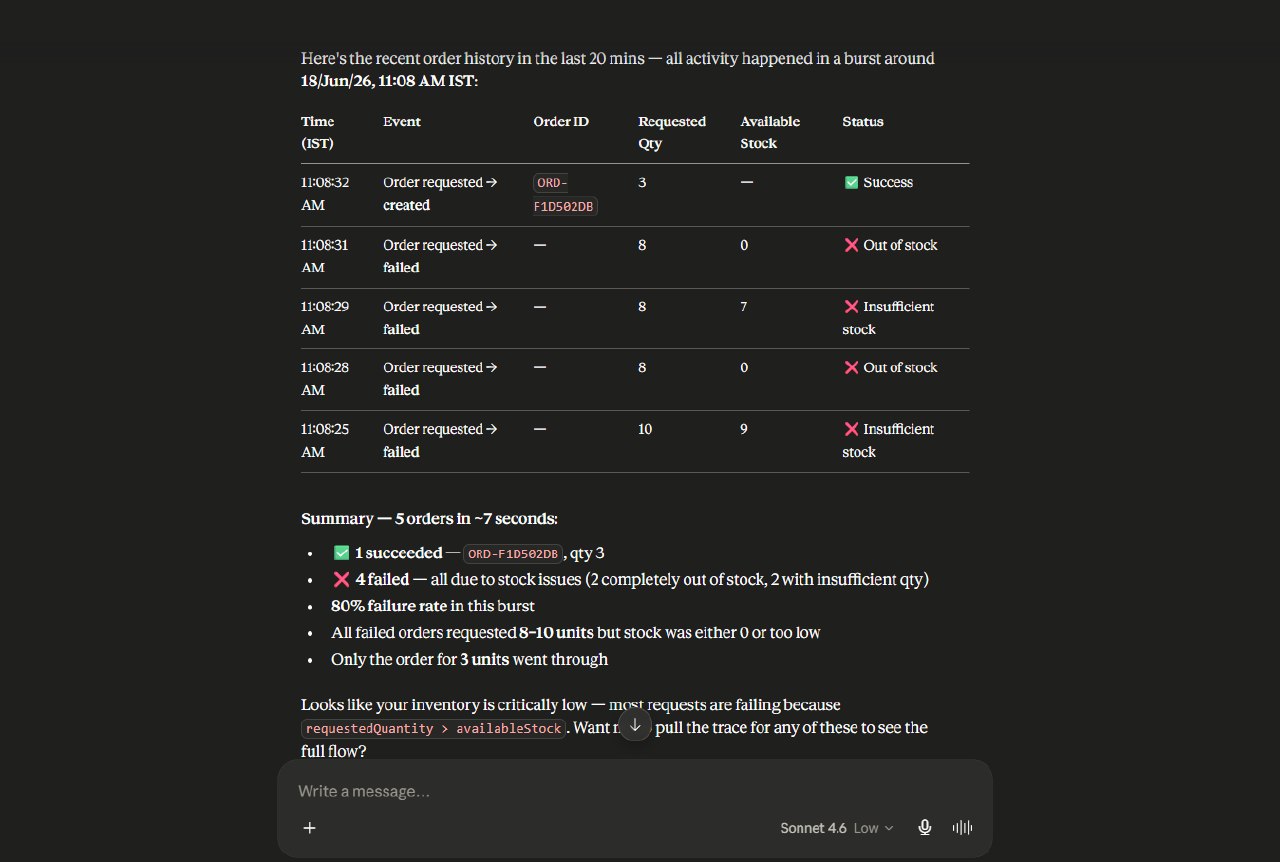

Ask Claude

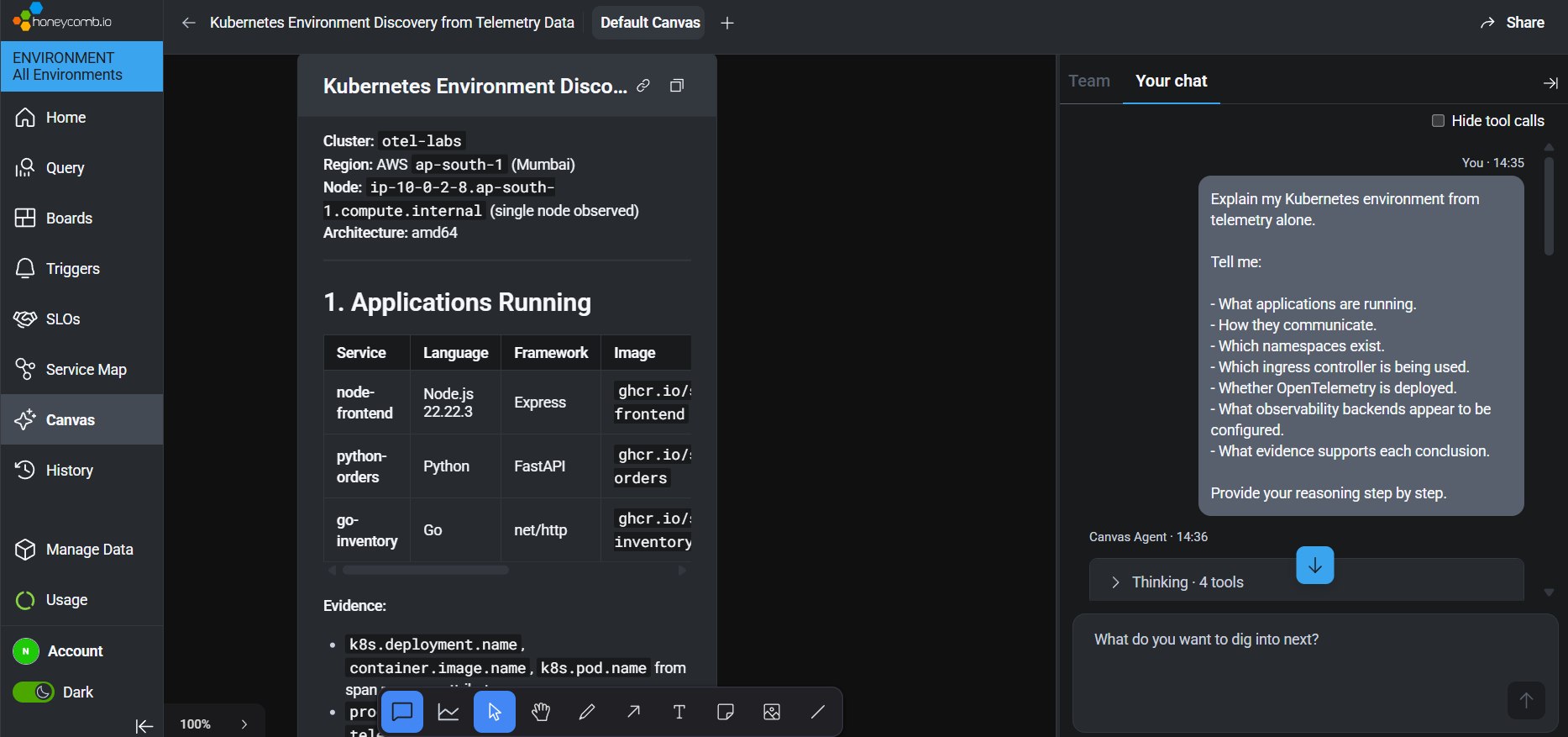

Honeycomb also provides an MCP server. The integration is straightforward and can be connected directly to Claude using only an API key, without requiring additional JSON configuration or setup. This makes it possible to ask questions about application and Kubernetes telemetry using natural language. Similar questions can also be asked directly from the Honeycomb Canvas interface shown earlier.

For example, you can ask questions about application operations:

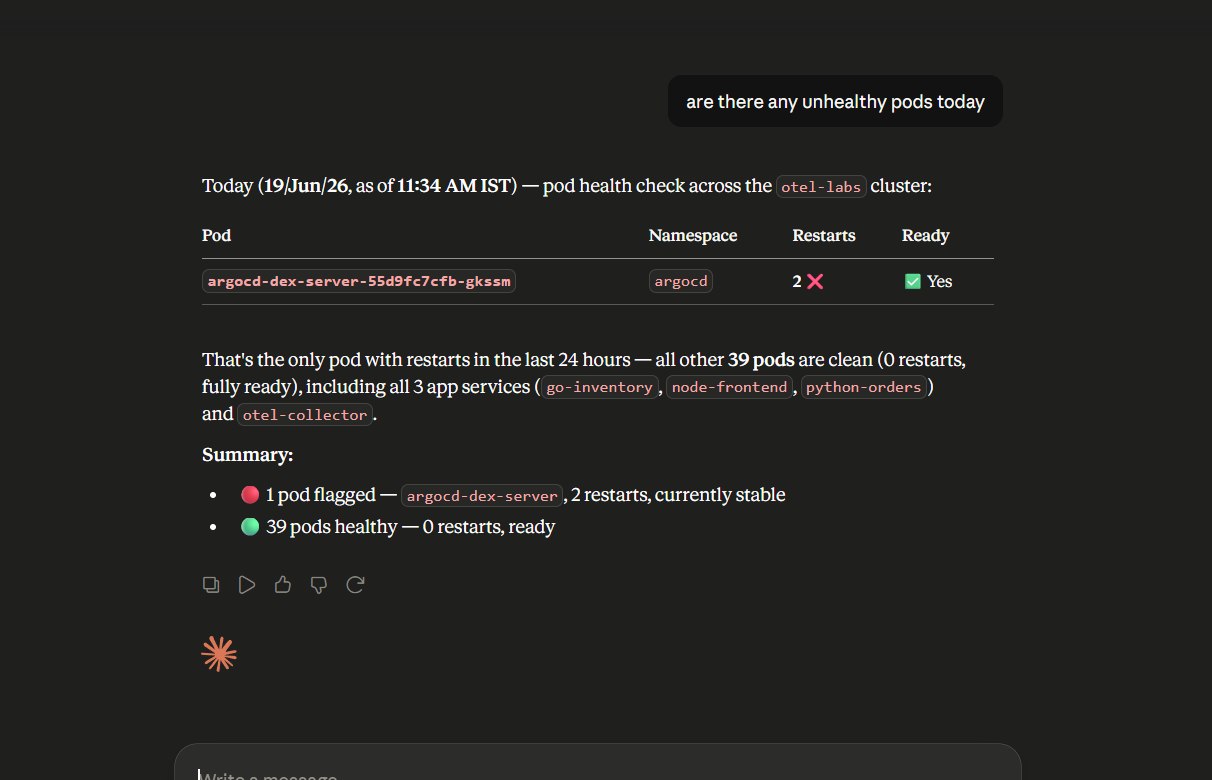

You can also investigate cluster health, identify unhealthy pods, or ask other questions that help analyze application and Kubernetes behavior.

Cleanup

To avoid issues during teardown, delete the ArgoCD applications first, remove the ingress resources, and then run terraform destroy to tear down the EKS infrastructure.

Delete ArgoCD Applications
        ↓
Delete Ingress Resources
        ↓
terraform destroy

Depending on the deployment approach used, remove the individual applications, root application, or Kustomize bootstrap before destroying the EKS infrastructure.

Lessons Learned

• The OpenTelemetry Collector’s multi-exporter pipeline makes backend independence practical — New Relic and Honeycomb can receive the same telemetry without requiring any application changes.
• Deploying the OpenTelemetry Collector as a DaemonSet ensures node-level metrics are collected from every worker node. A single collector Deployment only scrapes the kubelet of the node where it is running, resulting in incomplete metrics in multi-node clusters.
• Kubernetes observability requires combining multiple telemetry sources — kubeletstats, k8s_cluster, and kube-state-metrics each provide a different view of cluster health and workload behavior.
• kube-state-metrics exposes Prometheus metrics that can be scraped by the OpenTelemetry Collector and forwarded alongside application telemetry through a single telemetry pipeline.

Wrap Up

At this stage, the platform is fully operational and telemetry is flowing from both the applications and the Kubernetes cluster into multiple observability backends. Continue exploring New Relic and Honeycomb to analyze traces, metrics, logs, and Kubernetes telemetry from different perspectives, or integrate the telemetry pipeline with other observability stacks such as LGTM, ELK, Splunk or Dynatrace and compare how they fit your needs.
